جزئیات محصول:
|
| Name: | Common Solar Panel | size: | 210mmx210mm |
|---|---|---|---|
| Panel Efficiency: | 22% | Efficiency: | 15-20% |
| Certifications: | UL, CE, TUV, IEC | Current: | 12.5 amps |
| Power Output: | Varies depending on size and efficiency | Material: | Silicon |
| Inverter Type: | String or Micro Inverter | Maintenance: | Minimal maintenance required |
| Type: | Photovoltaic (PV) Panel | Weather Resistance: | IP65 |
| Inverter Compatibility: | Micro-inverter, string inverter | Cell Type: | Monocrystalline / Polycrystalline |
| Installation: | Roof-mounted or ground-mounted | ||
| برجسته کردن: | N Type Monocrystalline Solar Panel,Monocrystalline Solar Panel 410W,Monocrystalline Solar Panel 430W,Monocrystalline Solar Panel 410W,Monocrystalline Solar Panel 430W |
||

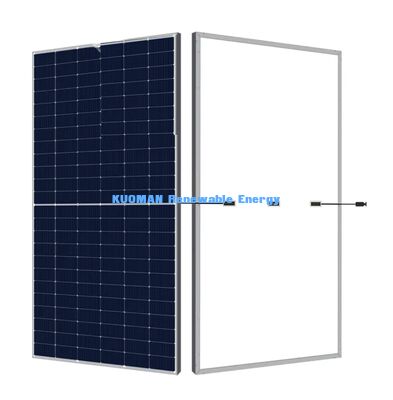

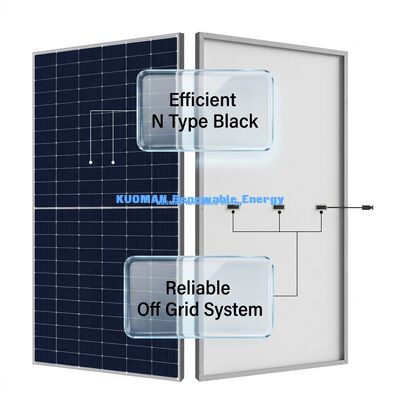

N Type Monocrystalline 410W-430W Black Customized Power System
N-Type monocrystalline cells with enhanced durability and efficiency.
Anodized aluminum frame and IP68-rated junction box for weather resistance.
Wide operating temperature range (-40°C to +85°C) for extreme climates.
Compatible with MC4 connectors and 1000V/1500V DC systems for scalable installations.
Customizable power output (410W-430W) to meet specific project requirements.
|
Structural Parameters
|
|
|
Cells
|
108pcs 182x93mm Monocrystalline solar cells
|
|
Module Dimension
|
1722x1134x30mm(LxWxH)
|
|
Module Weight
|
20.5kg
|
|
frame
|
Anodized aluminum profile |
|
Junction Box
|
Rated current:25A,IP68,TUV
|
|
Cable
|
Length Negative 400mm/Positive 300mm
|
|
Connector
|
Compatible with MC4
|
|
STC
|
|||||
|
Maximum Power (Pmax)
|
410W
|
415W
|
420W
|
425W
|
430W
|
|
Maximum Power Voltage (Vmp)
|
31.13V
|
31.32V
|
31.51V
|
31.70V
|
31.88V
|
|
Maximum Power Current (Imp)
|
13.17A
|
13.25A
|
13.33A
|
13.41A
|
13.49A
|
|
Open-circuit Voltage (Voc)
|
37.73V
|
37.92V
|
38.11V
|
38.30V
|
38.49V
|
|
Short-circuit Current (Isc)
|
13.91A
|
13.99A
|
13.99A
|
14.15A
|
14.23A
|
|
Module Efficiency STC (%)
|
21.00
|
21.25
|
21.51
|
21.76
|
22.02
|
|
STC
|
Irradiance 1000W/m2,cell temperature 25℃,AM1.5G
|
||||
|
Operating Conditions
|
|
|
Maxi System Voltage
|
1000V/1500V DC
|
|
Temperature range
|
-40°C~+85°C
|
|
Series Fuse Rating
|
25A
|
|
NOTC
|
45±2℃
|
|
Temperature Coefficient of Isc(α-Isc)
|
+0.033%/℃
|
|
Temperature Coefficient of Voc(β-Voc)
|
-0.29%/℃
|
|
Temperature Coefficient of Pmax(Y-Pmp)
|
-0.39%/℃
|
Wide Operating Range:
The system can function in extreme temperatures, from -40°C to +85°C, making it versatile for various environments.
High Voltage Compatibility:
Supports 1000V/1500V DC, which is ideal for large-scale solar installations where higher voltages improve efficiency and reduce energy losses.
Temperature Impact on Performance:
The temperature coefficients provide critical insights into how the system performs under different thermal conditions:
Power Output (Pmax): Decreases by 0.39% for every 1°C increase in temperature.
Voltage (Voc): Decreases by 0.29% for every 1°C increase in temperature.
Current (Isc): Increases slightly by 0.033% for every 1°C increase in temperature.
FAQ
What applications is this solar panel suitable for?
It is designed for residential, commercial, travel, and automotive power systems, including grid-tied and off-grid installations.
How does temperature affect performance?
Power output decreases by 0.39% per 1°C rise, while voltage drops by 0.29%. Current increases slightly (0.033% per 1°C).
Is this panel compatible with existing solar systems?
Yes, it uses standard MC4 connectors and supports 1000V/1500V DC, making it integrable with most inverters and mounting systems.
What certifications does the product have?
The junction box is TUV and IP68-rated, ensuring safety and durability in harsh conditions.
Can the panel withstand extreme weather?
Yes, its anodized aluminum frame and wide temperature range (-40°C to +85°C) allow operation in diverse climates.
What is the warranty and lifespan?
Typical product warranties cover 10-12 years, with a performance warranty of 25+ years for power output.
