جزئیات محصول:
|
| قدرت تخلیه: | 5 کیلو وات پیوسته | نوع اینورتر: | هیبرید |
|---|---|---|---|
| رابط ارتباطی: | CAN/RS485/RS232/تماس خشک | ظرفیت: | 13.5 کیلووات ساعت |
| ولتاژ: | 48 V | نوع باتری: | لیتیوم یون |
| چرخه عمر: | تا 10،000 چرخه | ظرفیت اسمی: | 200Ah |
| عمق تخلیه: | 90% | حداکثر جریان شارژ: | 100A/200A |
| حداکثر جریان تخلیه: | 100A/200A | دمای عملیاتی: | -20 درجه سانتی گراد ~ 55 درجه سانتی گراد (-4 درجه فارنهایت تا 131 درجه فارنهایت) |
| برجسته کردن: | Wall Remote Villa solar battery,Off-Grid LiFePO4 power system,Mobile floor standing battery storage |
||

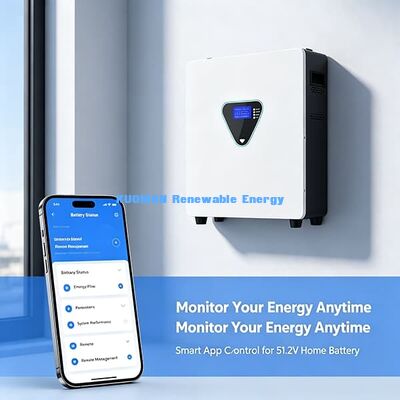

Wall Remote Villa Off-Grid Solar Battery 25.6V Series Mobile Floor Standing LiFePO4 No Grid Independent Power System
51.2V Wall-Mounted LiFePO4 Home Energy Storage Battery, built for residential & small commercial solar off-grid, grid-tied backup power systems. Available in 3 capacity options: 5120Wh(100Ah), 10496Wh(205Ah), 15360Wh(300Ah).
This sleek wall-mounted powerwall adopts safe LiFePO4 battery cells with 6000 cycles @80% DOD, ultra-wide working temperature from -20℃ to 55℃, supporting max 20A charge & discharge current for high-power household appliances. Integrated smart BMS with LCD touch display & mobile APP remote monitoring, perfectly compatible with solar hybrid inverters, stackable parallel design for capacity expansion, ideal for power outage backup, peak shaving & off-grid cabin/RV energy supply.
Technical Specifications
Model
25.6V 100Ah
25.6V 205Ah
25.6V 300Ah
51.2V 100Ah
51.2V 205Ah
51.2V 300Ah
Energy Storage
2560Wh
5248Wh
7680Wh
5120Wh
10496Wh
15360Wh
Rated Voltage
25.6V
25.6V
25.6V
51.2V
51.2V
51.2V
Voltage Range
21.6V-29.2V
21.6V-29.2V
21.6V-29.2V
43.2V-58.4V
43.2V-58.4V
43.2V-58.4V
Max Charge Current
100A
200A
200A
100A
200A
200A
Max Discharge Current
100A
200A
200A
100A
200A
200A
Discharging Cut-off Voltage
21.6V
21.6V
21.6V
43.2V
43.2V
43.2V
Floating Voltage
28.8V
28.8V
28.8V
57.6V
57.6V
57.6V
Cycle Life: 6000 cycles @ 80% DOD
Operating Temperature: -20°C ~ 55°C (-4°F ~ 131°F)Product Features
Application Scenarios
